- N/A
- 3V
- 18V
- 3V ~ 38V
- DC DC Regulator
- Step-Up (Boost)

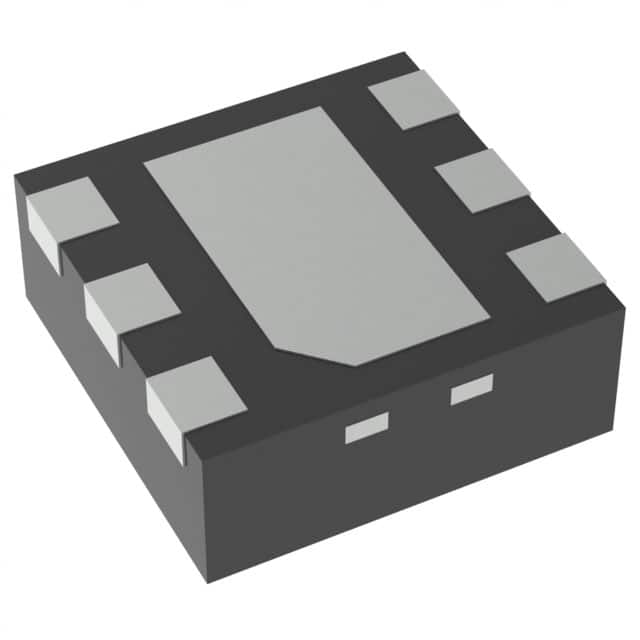

- 6-WSON (2x2)
- -
- 6-WDFN Exposed Pad
- Tape & Reel (TR)
- -40°C ~ 85°C (TA)
- 1
- Surface Mount
- Yes
- 1.2MHz
- PWM
- 1.2A (Switch)
- TPS61165
- Automotive, Backlight
| Product Attribute | |
 |
 |
 |
|---|---|---|---|---|
| Part Number | TPS61165DRVR | TPS61041DBVR | TPS61194PWPR | TPS61220DCKR |
| Manufacturer | N/A | N/A | N/A | N/A |
| Applications | Automotive, Backlight | Backlight | Backlight | - |
| Number of Outputs | 1 | 1 | 4 | 1 |
| Package | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Current - Output / Channel | 1.2A (Switch) | 215mA (Switch) | 100mA | - |
| Series | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Frequency | 1.2MHz | 1MHz | 300kHz ~ 2.2MHz | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TJ) |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | - |
| Supplier Device Package | 6-WSON (2x2) | SOT-23-5 | 20-HTSSOP | SC-70-6 |
| Package / Case | 6-WDFN Exposed Pad | SC-74A, SOT-753 | 20-PowerTSSOP (0.173', 4.40mm Width) | 6-TSSOP, SC-88, SOT-363 |
| Topology | Step-Up (Boost) | Step-Up (Boost) | SEPIC, Step-Up (Boost) | Boost |
| Voltage - Supply (Min) | 3V | 1.8V | 4.5V | - |
| Dimming | PWM | PWM | PWM | - |
| Voltage - Supply (Max) | 18V | 6V | 40V | - |
| Voltage - Output | 3V ~ 38V | 28V | 45V | - |
| Internal Switch(s) | Yes | Yes | Yes | - |
| Base Product Number | TPS61165 | TPS61041 | TPS61194 | TPS61220 |
We strictly controls the quality of products, environment and services.Through the ISO certification of the third party.
View MoreThe payment method can be chosen from the methods shown below: Wire Transfer (T/T, Bank Transfer), Western Union, Credit card, PayPal.
